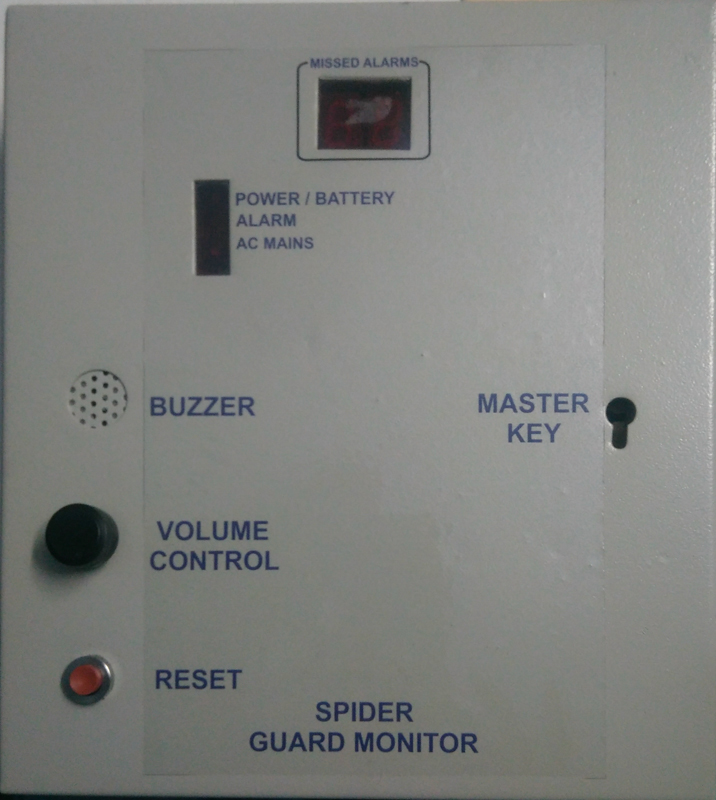

GUARD MONITOR

Features:

• Latest Digital Micro Controller Technology.

• 99 Lapses recorded on bright red LED display.

• In-built re-chargeable SMF battery.

• Battery backup of more than 3 - 4 hours.

• User Selectable Alarm interval of 15 or 30 minutes.

• Tamper-proof sturdy design with M.S. cabinet for Indian conditions.

• Volume control for Alarm.

• Audio Visual Indicator for Alarm.

• Key Switch for Supervisor.

* Installation

Hang the device in a water proof area of the guard cabin. Insert the Plug into a 220 V AC Wall Socket permanently. Turn the Key Lock Switch to ON position to start the timing operation of the device.

Normally the timing jumper is in 30 minute mode, you can change it to 15 minute if so desired.

* Starting the Guard Monitor

• Turn the Key Lock Switch to ON position.

• The timer starts immediately; after about 30 minutes, the buzzer gives a beep and the LED starts flashing. This is the signal for guard to press the RESET switch. If the guard is alert and he is able to press the switch within 60 seconds, the digital display remains at 00, otherwise a missed count of 01 is indicated.

• This process continues till the system is switched OFF by the supervisor.

Putting the Guard Monitor Off

• Turn the Key Lock Switch to OFF position.

NOTE: In OFF position, timer is OFF, but battery charging continues, If AC mains is connected.

Warning: Protect from direct rainfall.
